Description

S2PView is a very useful application runs on Windows operating system mainly used to plot S – parameters of passive and active components. It has easy to use graphical user interface and plots with responsive design.

Supported Formats

Logarithmic Magnitude
VSWR
Phase format

Options

Support one, two and three port S – parameters
Support multiple files for comparison
Export in .xls format
Print plots and results
Relative plots between any measurements
Creation of averaged matrix of several measurements

System Requirements

Microsoft Windows XP, Vista, 7, 8, 10 (32 /64 bits)

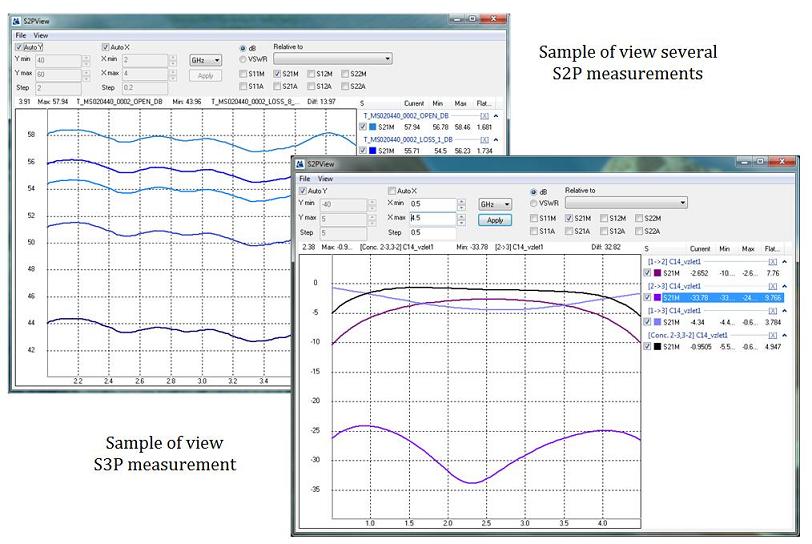

Program Interface

Download S2PView (6.6 MB) v.1.7 17.12.2024
