MC3058-2

Description

МС3058-2 is wideband GaAs power amplifier with a small signal gain of 15 dB (typ). This device is well suited for fiber optic, microwave radio, radar systems, telecom infrastructure, test instrumentation and VSAT applications.


Features:

  • Operating Frequency: ΔF = 2 to 20 GHz
  • Small Signal Gain: Gss = 15 dB
  • Operating Voltage: VDC = 5 V
  • RF Output Power Р-1: Р-1 = 16 dBm

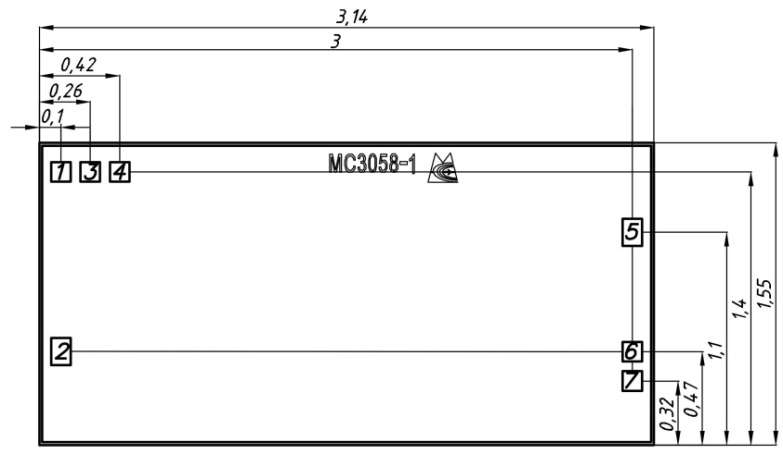

  • Die Size: 3.14 х 1.55 х 0.1 mm3



Electrical Specification (VDC = 5 V, I0=95 mА, Т=25°С)

Parameter

Symbol

Units

Min

Max

Condition

Operating Frequency

ΔF

GHz

2

20



Return Loss input/output

RL

dB

-15 / -10



Small Signal Gain

Gss

dB

14

17





RF Output Power Р-1



Р-1



dBm

17

F=2 GHz

16

F=10 GHz

13

F=20 GHz



Noise Figure



NF



dB

5,4

F=2 GHz

3

F=10 GHz

3.9

F=20 GHz

Operating Current

IDD

110



Operating Voltage

VDC

V

5

8
